Scmdraft 2 - 0.9.0 Preview

Forum Index > BW General
Post a Reply
1 2 3 4 5 Next All
S.I.
Profile Joined April 2017
58 Posts
Last Edited: 2017-07-02 21:13:16
May 17 2017 00:09 GMT
#1
After having worked on improving the stability and features of scmdraft 2 for the last couple of months, I think it is a good time to get some feedback on the (minor) changes to the UI, and squish the remaining and any newly introduced bugs.

The current build (Latest: 2017.07.02) may be accessed here: www.stormcoast-fortress.net

Most of the work went into improving the internal code and structures, but there are some UI changes. This includes a new overlay panel on the left sidebar, a reworked doodad palette, and a new unit palette.

Let me know what you think and if it works.


Some of the new features:

Transparent creep:
[image loading]

Rotational Symmetry:
[image loading]

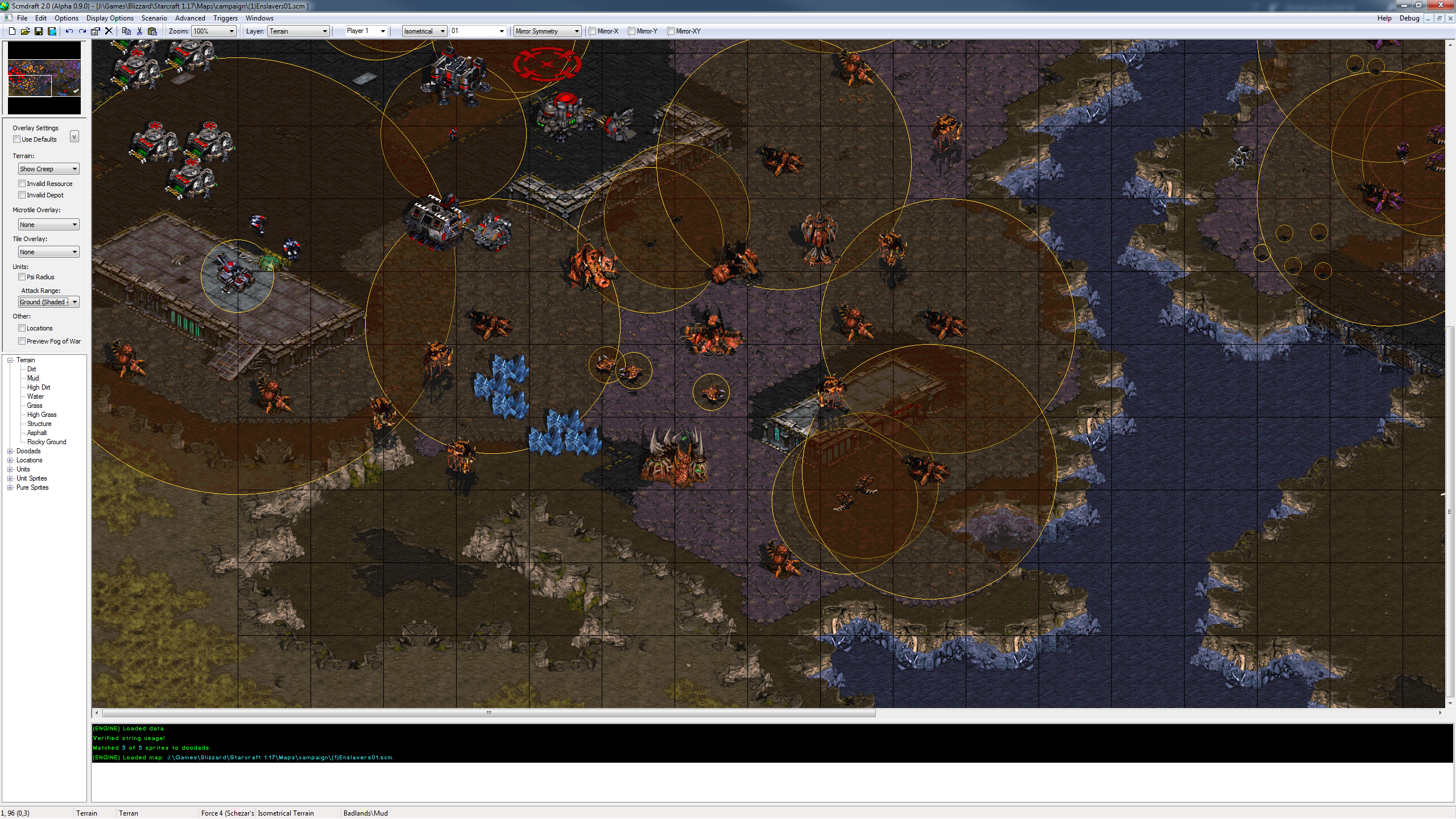

Unit range display
[image loading]


Pathfinding region preview
[image loading]
Mistakes
Profile Joined February 2011
United States1097 Posts
May 17 2017 00:13 GMT
#2
Ooh very interested. I spent many hours with the first one. :D
StarCraft | www.psistorm.com | www.twitter.com/MistakesSC | www.twitch.tv/MistakesSC | Seattle
heluq
Profile Joined October 2014
Spain112 Posts
May 17 2017 00:20 GMT
#3
good job!
JungleTerrain
Profile Joined January 2012
Chile785 Posts
May 17 2017 01:25 GMT
#4
Thanks Suicidal Insanity, the best editor out there just became better.
www.broodwarmaps.net
JungleTerrain
Profile Joined January 2012
Chile785 Posts
May 17 2017 03:45 GMT
#5
SI, if we want to post a bug, or even a suggestion, or anything like that, would you like it to be posted here on TL or on Staredit.net, or PM or email? I personally have a really hard time with SEN (doesn't even send me a verification email even after multiple tries).
www.broodwarmaps.net
FOXin
Profile Blog Joined May 2017
China15 Posts
May 17 2017 05:22 GMT
#6
unbelievable,this project is still alive。
S.I.
Profile Joined April 2017
58 Posts
Last Edited: 2017-05-17 08:28:55
May 17 2017 07:57 GMT
#7
On May 17 2017 12:45 JungleTerrain wrote:
SI, if we want to post a bug, or even a suggestion, or anything like that, would you like it to be posted here on TL or on Staredit.net, or PM or email? I personally have a really hard time with SEN (doesn't even send me a verification email even after multiple tries).


Here is fine. That's why I made the thread =) Once I'm fairly confident most of the remaining bugs have been found and fixed I'll continue posting it to more sites.

Note: I may be traveling the next few days and offline
JungleTerrain
Profile Joined January 2012
Chile785 Posts
Last Edited: 2017-05-17 18:44:30
May 17 2017 18:33 GMT
#8
On May 17 2017 16:57 S.I. wrote:
Show nested quote +
On May 17 2017 12:45 JungleTerrain wrote:
SI, if we want to post a bug, or even a suggestion, or anything like that, would you like it to be posted here on TL or on Staredit.net, or PM or email? I personally have a really hard time with SEN (doesn't even send me a verification email even after multiple tries).


Here is fine. That's why I made the thread =) Once I'm fairly confident most of the remaining bugs have been found and fixed I'll continue posting it to more sites.

Note: I may be traveling the next few days and offline



One small QoL suggestion I have:

-Switching from one map window to another one, preserving the brush that had been selected in that window before switching to another one (or at least having the option to preserve brush).
I tend to do a lot of copy/paste work in my melee maps, and I switch windows constantly. Having to go back and select the same brush I was using before can get quite annoying.
Example: Was on a space map, using Low Platform brush. Switched to other window to check something, go back to the original window, and Elevated Catwalk was selected instead of Low Platform brush.
Very small thing, if it's not too much trouble it would be great!

EDIT: After some thought, this might be better as an option more than a default setting.

Just checked but it also applies to the other layers (Unit, Doodad, Sprite, etc.). Maybe there could be an option like "Preserve Brush when Window Switching" or something of the sort [under Profile Settings maybe?]

I'm absolutely loving the Tile and Microtile overlays! Although I'm not too sure what some of them are, for example, what is the difference between "Height" and "High Ground"? (EDIT2: Just found out what Height does) And all the "Unknown" or "Deprecated" overlays? Maybe these questions are better answered on SEN, although I cannot even make an account there... Will you be filling these in with more proper names once they are figured out in an upcoming release?

Thanks SI! It's looking great so far. I quickly looked through most of the options and features, haven't found anything odd.

www.broodwarmaps.net
JungleTerrain
Profile Joined January 2012
Chile785 Posts
May 17 2017 18:57 GMT
#9
Not sure if this is intended, but resizing the terrain, unit and doodad windows by dragging the corner/border causes it to move as it is being dragged by the cursor. Looks kinda buggy as it does this, as well.
www.broodwarmaps.net
S.I.
Profile Joined April 2017
58 Posts
Last Edited: 2017-05-17 19:41:01
May 17 2017 18:58 GMT
#10
Switching between maps should restore the previous layer + brush settings. Same when switching back and forth between layers. I change a lot of the implementation of how the exact brush contents are stored (I now have a nice "StarcraftBrush" class instead of a bunch of settings), so it looks like that isn't working perfectly. I'll get that fixed soon.

I'm fairly sure the game doesn't even load most of the 'deprecated' flags, those are just listed for people who are interested in viewing the info stored in the tileset. The game regenerates a few pathfinding and fog of war related ones on data load, and overwrites em. If anyone knows what the unknown flags are for I'll add proper names.

For the palettes: What OS are you using? I haven't seen that happen on either of my PCs. (Maybe we should take the troubleshooting to PMs)
Freakling
Profile Joined October 2012
Germany1349 Posts
Last Edited: 2017-05-20 13:55:02
May 17 2017 20:06 GMT
#11
On May 18 2017 03:33 JungleTerrain wrote:I'm absolutely loving the Tile and Microtile overlays! Although I'm not too sure what some of them are, for example, what is the difference between "Height" and "High Ground"? (EDIT2: Just found out what Height does) And all the "Unknown" or "Deprecated" overlays? Maybe these questions are better answered on SEN, although I cannot even make an account there... Will you be filling these in with more proper names once they are figured out in an upcoming release?


Since I spend a lot of time helping figuring these out: Here's a complete list of currently available tile flag overlays:
Minitile level overlays:
Impassable: exactly what it says on the tin (aka unwalkable)
Medium Ground: ewisott
High Ground: ewisott
Obscuring: vision obstructing doodads. These are only used to initialize tilewise vision calculations. If at least one minitile of a tile has a set flag, that tile acts as a vision blocking tile (blocks line of sight for all ground units on any terrain level)
Unknown(ramp?): ewisott (only ever set on ramp tiles). Which function this has in the game, if any, is not known.
Others(0xFFE0): Unused flags. Have no function and are never set. Just ignore these
Height: Combination of Medium Ground, High Ground and Obscuring flags (see above), so you can see all terrain levels in one overlay (better combination and customization options may be implemented later).

Tile level overlays:
Building placability (sic!): read: buildability... For Installation this currently seems to only show settings of flag 0x8000 instead, which allows for the placement of Beacons and Starting Locations, but not actual buildings.
Creep: Creep tiles (currently marks both creep tiles from the palette and tiles dynamically covered with creep from a source unit)
LOS obscuring: Marks vision blocking tiles. Not an actual tile flag but a value the engine generates at gamestart from the associated subtile flags (see above)
Height: Also not an actual flag but an elevation value the game engine calculates at game start to determine terrain level for vision calculations. Vision blocking tiles are also included in this overlay, so you could more accurately dub it the vision overlay. The minitile threshold is off by 1 for medium ground in this version, but S.I. will fix that today.
Provides Cover: Tiles that grands units on them a ~50% chance to be missed by ranged attacks
Mostly walkable/Not mostly walkable: One being just the inversion of the other; I can't be sure, but I think this is actually not a pre-set flag but information calculated at game-start for pathfinding. Less than 4 unwalkable subtiles is the threshold.
Partially walkable: Similar to the above, but assigned to all tiles which are neither fully walkable nor fully unwalkable.
Deprecated(0x0001): Seems to have denoted something similar to unbuildability at some point. As the deprecated already suggests, you can safely forget about this one.
Deprecated(0x0004): Denotes normal unwalkable terrain types, i.e. cliffs and water-like terrain. Probably no in-game function.
Deprecated(0x0100): Indicates doodads with sprites. Used to initialize sprite flags. Does not really yield any useful information.
Deprecated(0x0200): Seems to have indicated medium ground at some point, except for Badlands and Ash World terrains.
Deprecated(0x0400): Seems to have indicated high ground at some point, except for Badlands and Ash World terrains where it is linked to medium ground instead.
Unknown(0x0002), (0x0008), (0x0020), Deprecated(0x0800): These are unused (never set), just ignore them.
Pure/Unit/Flipped Sprite (doodad): Used to initialize doodad sprite flags. Pretty much ewisott.
Bolshevik-
Profile Joined November 2015
39 Posts
May 17 2017 23:29 GMT
#12
The new SC doesn't allow for some colors like black and blueish grey (they appear as some random color like teal or green in game instead of the black assigned). If possible a fix would be much appreciated.
S.I.
Profile Joined April 2017
58 Posts
Last Edited: 2017-05-17 23:44:34
May 17 2017 23:44 GMT
#13
Black never was an official color, it just worked to due a buffer overflow in the player color lookup, and always has been patch dependent. StarCraft (since broodwar and up to 1.16) only has 16 colors defined "officially". I never tested if 1.18 still has all 16 - but they still are in the data files for the 8bit graphics.
Bolshevik-
Profile Joined November 2015
39 Posts
May 18 2017 02:03 GMT
#14
On May 18 2017 08:44 S.I. wrote:
Black never was an official color, it just worked to due a buffer overflow in the player color lookup, and always has been patch dependent. StarCraft (since broodwar and up to 1.16) only has 16 colors defined "officially". I never tested if 1.18 still has all 16 - but they still are in the data files for the 8bit graphics.


Yeah well I know the blueish gray and a couple numbers that I'v tried including "19" and "20" (diff shades of black) don't work. Hardly a big deal just makes me sad because black was really cool in this one UMS map that I liked to play.
TelecoM
Profile Blog Joined January 2010
United States10518 Posts
May 18 2017 04:47 GMT
#15
Amazing work, glad SCMDraft is still going, the functionality in this thing is unbelievable...I've tinkered with it a few times myself. =P
AKA: TelecoM[WHITE] Protoss fighting
Freakling
Profile Joined October 2012
Germany1349 Posts
Last Edited: 2017-05-18 09:04:04
May 18 2017 09:03 GMT
#16
On May 18 2017 08:44 S.I. wrote:
Black never was an official color, it just worked to due a buffer overflow in the player color lookup, and always has been patch dependent. StarCraft (since broodwar and up to 1.16) only has 16 colors defined "officially". I never tested if 1.18 still has all 16 - but they still are in the data files for the 8bit graphics.

Only colours 1..12 (red, blue, teal, purple, orange, brown, white, yellow, green, tan [aka. peach], pale yellow, dark aqua [neutral player colour]) are properly defined, all others are buffer overflows which appear differently, dependent on the tileset and game version.
It might be possible to find a black colour under 1.18 (or some other one that looks cool) by just testing the complete byte range.
Glioburd
Profile Joined April 2008
France1867 Posts
May 18 2017 09:38 GMT
#17
Cool initiative, thanks, I will try to play with it like the good old times :p
"You should hate loosing, but you should never fear defeat." NaDa.
JungleTerrain
Profile Joined January 2012
Chile785 Posts
Last Edited: 2017-05-19 12:11:37
May 19 2017 08:19 GMT
#18
Image 1
[image loading]
Image 2
[image loading]
Image 3
[image loading]

So I wanted to point out what seems to be a UI inconsistency.

Image 1 shows that I have the minerals selected, and at the bottom it says "7 units selected." This is correct.

Image 2 shows what happens after you place a unit and then try to select any other units. Here I have placed a few marines for Player 1, and then I selected them. As you can see, the UI at the bottom does not update and still displays "Placing: Terran Marine." SCMDraft 2.0 Beta 0.8.0 in this case would display "# units selected" here.

Image 3 shows what happens after you clear the selection. At the bottom, the big arrow is pointing to the fact that it still says "Placing: Terran Marine" even though this is not the case. In 0.8.0 this would just say "No selection."

Also, I don't know how big of a deal this is, but the three smaller arrows are pointing to the graphical residue left by the HP bars of the units leftover after clearing the selection. Once you move the camera to another part of the map, these clear. Might not be able to see it on here... I might have to put a zoomed in picture.

Not sure if you were aware of these already, but there ya go!

www.broodwarmaps.net
S.I.
Profile Joined April 2017
58 Posts
May 19 2017 17:49 GMT
#19
Didn't know about the status bar issue, good catch. I knew about the health bar remnants (The good news is: the healthbars now have the correct offset !), but I'm sure there are other graphical glitches I don't know about, since I changed quite a bit of the GFX code.
S.I.
Profile Joined April 2017
58 Posts
Last Edited: 2017-05-21 10:35:50
May 21 2017 10:31 GMT
#20
I decided to do something fun last night.... transparent creep: [image loading]
1 2 3 4 5 Next All
Please log in or register to reply.
Live Events Refresh
OSC
02:00
Orca Cup Qualifiers
Liquipedia
The NA Apprentice
01:00
Code S Group A
LiquipediaDiscussion
Coach Pupil League
00:00
Match of the Week - WEEK 1-A
LiquipediaDiscussion
[ Submit Event ]
Live Streams
Refresh
StarCraft 2
WinterStarcraft571
ViBE445
NeuroSwarm 276
Nina 247
PiLiPiLi 79
CosmosSc2 71
PandaBearMe 30
StarCraft: Brood War
Artosis1804
Horang2 1638
ToSsGirL 433
Noble 71
nyoken 71
Killer 44
Last 30
Counter-Strike: Global Offensive
ptr_tv212
Super Smash Bros
C9.Mang02077
Other Games
summit1g30510
shahzam2645
Hui .97
kaitlyn96
ChuDatz94
-ZergGirl53
ROOTCatZ18
KawaiiRice9
Organizations
Counter-Strike: Global Offensive
ESL CS:GO2810
Other Games
BasetradeTV345
StarCraft 2
ESL.tv226
OGamingTV SC2 99
SC2 Vod Archives62
Blizzard YouTube
[ Show 21 non-featured ]
StarCraft 2
• SkrOs 132
• practicex 35
• D4rkn0ob1k 6
• hirohiro 1
• Genesis Gaming
• Laughngamez YouTube
• AlphaB_SC2
• Mintcrystall0
• Migwel
• Matiz_pl
• LaughNgamez Trovo
• aXEnki
• IndyKCrew
• Kozan
• intothetv
SC2: Legacy of the Void
• KarlJayG
• PSISTORM Gaming
StarCraft: Brood War
• HerbMon 29
• sscaitournament5
• AfreecaTV YouTube
Other Games
• TSM TheOddOne1088
Upcoming Events
GSL Super Tournament
2h 42m
Trap vs Dark
INnoVation vs Solar
sOs vs ByuN
DongRaeGu vs Dream
OSC
3h 42m
ITaX Trovo Weekly
7h 42m
Patience vs TIME
Rogue vs Creator
The Three-Winged Angel
11h 42m
MaNa vs Bee
Lambo vs MarineLorD
MarineLorD vs MaNa
Krystianer vs Lambo
Lambo vs MaNa
Shinhan Tank Proleague
14h 42m
Coach Pupil League
18h 42m
The NA Apprentice
18h 42m
The Three-Winged Angel
1d 11h
WardiTV 2021
1d 11h
BWCL
1d 14h
[ Show More ]
The NA Apprentice
1d 19h
Shinhan Tank Proleague
2 days
The NA Apprentice
2 days
PSISTORM Gaming Misc
2 days
Showmatch
3 days
PSISTORM Gaming Misc
3 days
The Three-Winged Angel
3 days
OSC
3 days
BSL: Ladder Tournament
3 days
Battle for Aiur
3 days
Bonyth vs Dewalt
Student Starcraft AI To…
3 days
The NA Apprentice
3 days
AfreecaTV Starcraft Tea…
4 days
WardiTV 2021
4 days
Trap vs ByuN
Trap vs Solar
Solar vs MaxPax
ByuN vs MaxPax
Trap vs MaxPax
Creator vs MaxPax
ByuN vs Creator
Trap vs Creator
The Three-Winged Angel
4 days
Platinum Heroes Events
4 days
Student Starcraft AI To…
4 days
ESL Pro Tour
5 days
ESL Pro Tour
5 days
ESL Pro Tour
5 days
AfreecaTV Starcraft Tea…
6 days
OlimoLeague
6 days
Liquipedia Results

Completed

Polish Starcraft League 3
Cheeseadelphia Winter
MCC 2021 Qualifier 1
BLAST Premier Global Final

Ongoing

Ultimate Battle
Shinhan Tank Proleague S4
BWCL Season 52
ASTL Season 2
BW Jeez weekly GF 2020
WardiTV 2021
2021 AfreecaTV GSL Super Tournament 1
MCC 2021 Qualifiers
NGS Storm Division S2 Quals
NGS Storm Division S2 Qual. 4
ESEA S36 - NA Premier
ESEA S36 - EU Premier
ESEA S36 - AU Premier
cs_summit 7

Upcoming

Bombastic StarLeague 11
Rogue City Rumble
IEM Katowice 2021
Masters Clash Champ. 2021
NGS Storm Division S2 Qual. 7
NGS Storm Division S2 Qual. 6
NGS Storm Division S2 Qual. 5
MCC 2021 Qualifier 2
DH Masters Spring 2021
BLAST Premier Spring Showd.
ESL Pro League Season 13
IEM Katowice 2021
BLAST Premier Spring Groups
DreamHack Open Jan 2021
TLPD

1. ByuN
2. TY
3. Dark
4. Solar
5. Stats
6. Nerchio
7. sOs
8. soO
9. INnoVation
10. Elazer
1. Rain
2. Flash
3. EffOrt
4. Last
5. Bisu
6. Soulkey
7. Mini
8. Sharp
Sidebar Settings...

Advertising | Privacy Policy | Terms Of Use | Contact Us

Original banner artwork: Jim Warren
The contents of this webpage are copyright © 2021 TLnet. All Rights Reserved.
